What is Android Relative Layout?

Muhammad Haris Noor

Android Relative Layout allows you to arrange child views relative to their parent and sibling views.

How to position views

Android Relative Layout enables you to align two or more views by the bordersleft, right, top, below, centered in the screen, positioned to each other (by using @id of relative view), and various other positions.

You can align them by using true for the desired alignment: android:layout_DesiredAlignment=true

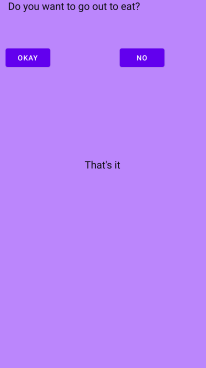

Here is a simple example of code for relative layout in .xml file:

<?xml version="1.0" encoding="utf-8"?>

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingLeft="15dp"
    android:paddingRight="15dp"
    android:background="@color/purple_200">

    <TextView
        android:id="@+id/textview1"
        android:layout_width="352dp"
        android:layout_height="50dp"
        android:text=" Do you want to go out to eat? "
        android:textColor="#070707"
        android:textSize="20sp" />

    <Button
        android:id="@+id/button1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignBottom="@id/textview1"
        android:layout_marginBottom="-90dp"
        android:text="Okay" />

    <Button
        android:id="@+id/b2"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignRight="@id/button1"
        android:layout_alignBottom="@id/textview1"
        android:layout_marginRight="-225dp"
        android:layout_marginBottom="-90dp"
        android:text="No" />

    <TextView
        android:id="@+id/text2"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignBottom="@+id/button1"
        android:layout_centerInParent="true"
        android:textColor="#070707"
        android:textSize="20dp"
        android:layout_marginBottom="-200dp"
        android:text="That's it" />

</RelativeLayout>



Explanation

  • For @+id/button1 in relative layout, alignment is set under the bottom of @+id/textview1 (Line 22)
  • For @+id/b2, alignment is set under the bottom of @+id/textview1 and to the right of @id/button1 (Line 30, 31)
  • For @+id/text2, alignment is set under the bottom of @+id/button1 and in the center of layout by making the condition true(Line 40,41)
