1.12 Aircon and Heating Controls

1.12 Aircon and Heating Controls

We'll cover the following...

We monitor the temperature and change the heating to aircon when it is more than 20 degrees, and heating when it is below 20 degrees.

First create a directory src/components/TeslaClimate, create a TeslaClimate.js file in it, and enter the following code:

Javascript (babel-node)
import React from 'react';
import PropTypes from 'react';
import './TeslaClimate.css';
const TeslaClimate = (props) => (
  <div className="tesla-climate">
    <label
      className={'tesla-climate__item ${props.value ? 'tesla-climate__item--active' : '' }  ${!props.limit ? 'tesla-heat':''}'}
    >
      <p>{props.limit ? 'ac' : 'heat'} {props.value ? 'on' : 'off'}</p>
      <i className="tesla-climate__icon"></i>
      <input
        type="checkbox"
        name="climate"
        checked={props.value}
        onChange={() => {props.handleChangeClimate()}}
      />
    </label>
  </div>
);
TeslaClimate.propTypes = {
  value: PropTypes.bool,
  limit: PropTypes.bool,
  handleChangeClimate: PropTypes.func
}
export default TeslaClimate;

This component changes the style class according to the props.value passed in, and changes the text according to props.limit.

TeslaBattery passes callback(handleChangeClimate in this case) to TeslaClimate, which is executed whenever the state needs to be updated. onChange event can be used to notify the event. The callback passed by TeslaBattery is called with setState() to update its state and re-render.

1.12.1 TeslaClimate Component Style

Create a TeslaClimate.css file in the src/components/TeslaClimate directory and specify the following styles. Since the code is long and omitted here, let’s check the source code.

Javascript (babel-node)
.tesla-climate {
	  float: left;
  }
  .tesla-climate__item {
    cursor: pointer;
    display: block;
    width: 100px;
    height: 100px;
    border: 6px solid #f7f7f7;
    border-radius: 50%;
    box-shadow: 0px 1px 3px rgba(0, 0, 0, 0.3);
    color: #666;
    background: #fff;
  }
  ...

1.12.2 Import TeslaClimate Component in TeslaBattery Container

Now we will implement callback in TeslaBattery and pass it to the TeslaClimate component.

First, add import to use the TeslaClimate component in TeslaBattery.js. We implement callback function handleChangeClimate() and bind it in constructor(). Then pass the callback function to the TeslaClimate component as props.

Javascript (babel-node)
...
import TeslaClimate from '../components/TeslaClimate';
...
constructor(props) {
  super(props);
  ...
  this.handleChangeClimate = this.handleChangeClimate.bind(this);
  ...
}
// handle aircon & heating click event handler
handleChangeClimate() {
  const config = {...this.state.config};
  config['climate'] = !this.state.config.climate;
  this.setState({ config });
}
...
<TeslaClimate
  value={this.state.config.climate}
  limit={this.state.config.temperature > 10}
  handleChangeClimate={this.handleChangeClimate}
/>
...

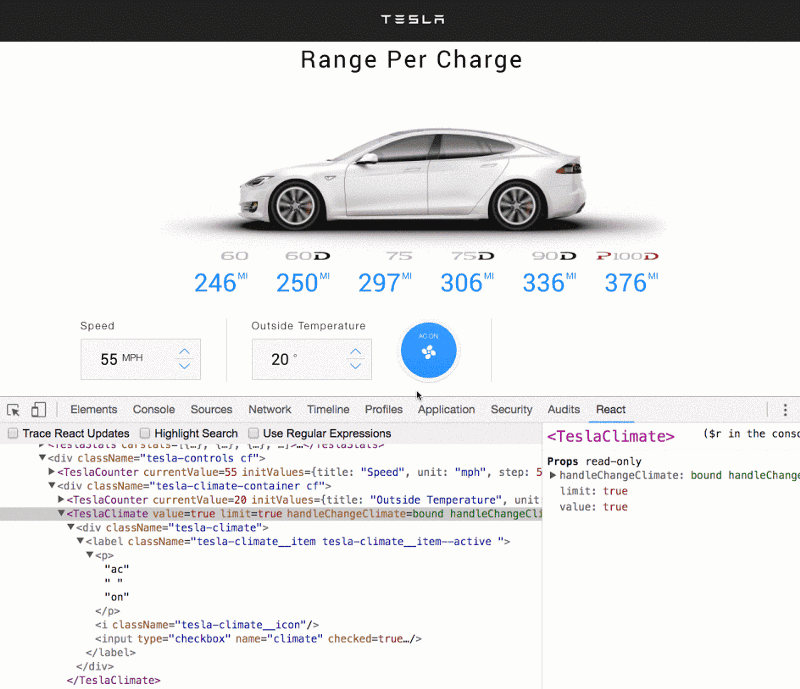

Now the state value changes according to the temperature change, and when the changed value is passed to the TeslaClimate component, the style class and text are changed according to the value.

widget
export function getModelData() {
    return {
      '60': {
        19: {
          on: {
            speed: {
              45: {
                '-10': 224,
                '0': 255,
                '10': 287,
                '20': 289,
                '30': 287,
                '40': 258
              },
              50: {
                '-10': 211,
                '0': 238,
                '10': 264,
                '20': 267,
                '30': 267,
                '40': 244
              },
              55: {
                '-10': 198,
                '0': 221,
                '10': 242,
                '20': 246,
                '30': 245,
                '40': 228
              },
              60: {
                '-10': 184,
                '0': 204,
                '10': 222,
                '20': 225,
                '30': 226,
                '40': 212
              },
              65: {
                '-10': 170,
                '0': 187,
                '10': 202,
                '20': 206,
                '30': 208,
                '40': 195
              },
              70: {
                '-10': 156,
                '0': 172,
                '10': 185,
                '20': 189,
                '30': 190,
                '40': 179
              },
            }
          },
          off: {
            speed: {
              45: {
                '-10': 297,
                '0': 312,
                '10': 318,
                '20': 325,
                '30': 329,
                '40': 333
              },
              50: {
                '-10': 269,
                '0': 283,
                '10': 288,
                '20': 294,
                '30': 298,
                '40': 304
              },
              55: {
                '-10': 245,
                '0': 256,
                '10': 261,
                '20': 267,
                '30': 269,
                '40': 277
              },
              60: {
                '-10': 221,
                '0': 231,
                '10': 236,
                '20': 242,
                '30': 243,
                '40': 252
              },
              65: {
                '-10': 200,
                '0': 209,
                '10': 214,
                '20': 219,
                '30': 222,
                '40': 230
              },
              70: {
                '-10': 181,
                '0': 189,
                '10': 194,
                '20': 199,
                '30': 202,
                '40': 209
              },
            }
          }
        },
        21: {
          on: {
            speed: {
              45: {
                '-10': 220,
                '0': 251,
                '10': 283,
                '20': 285,
                '30': 282,
                '40': 284
              },
              50: {
                '-10': 208,
                '0': 234,
                '10': 260,
                '20': 262,
                '30': 262,
                '40': 240
              },
              55: {
                '-10': 194,
                '0': 216,
                '10': 238,
                '20': 241,
                '30': 240,
                '40': 224
              },
              60: {
                '-10': 180,
                '0': 199,
                '10': 217,
                '20': 220,
                '30': 221,
                '40': 208
              },
              65: {
                '-10': 166,
                '0': 183,
                '10': 198,
                '20': 202,
                '30': 203,
                '40': 191
              },
              70: {
                '-10': 152,
                '0': 167,
                '10': 180,
                '20': 184,
                '30': 185,
                '40': 174
              },
            }
          },
          off: {
            speed: {
              45: {
                '-10': 292,
                '0': 307,
                '10': 314,
                '20': 320,
                '30': 324,
                '40': 328
              },
              50: {
                '-10': 265,
                '0': 278,
                '10': 283,
                '20': 289,
                '30': 293,
                '40': 298
              },
              55: {
                '-10': 240,
                '0': 251,
                '10': 256,
                '20': 261,
                '30': 264,
                '40': 272
              },
              60: {
                '-10': 217,
                '0': 226,
                '10': 231,
                '20': 236,
                '30': 238,
                '40': 247
              },
              65: {
                '-10': 196,
                '0': 204,
                '10': 209,
                '20': 214,
                '30': 217,
                '40': 225
              },
              70: {
                '-10': 177,
                '0': 184,
                '10': 189,
                '20': 194,
                '30': 197,
                '40': 204
              },
            }
          }
        }
      },
      '60D': {
        19: {
          on: {
            speed: {
              45: {
                '-10': 227,
                '0': 258,
                '10': 291,
                '20': 293,
                '30': 292,
                '40': 264
              },
              50: {
                '-10': 215,
                '0': 242,
                '10': 269,
                '20': 271,
                '30': 272,
                '40': 250
              },
              55: {
                '-10': 201,
                '0': 224,
                '10': 247,
                '20': 250,
                '30': 251,
                '40': 235
              },
              60: {
                '-10': 187,
                '0': 207,
                '10': 226,
                '20': 229,
                '30': 232,
                '40': 217
              },
              65: {
                '-10': 172,
                '0': 191,
                '10': 207,
                '20': 211,
                '30': 213,
                '40': 201
              },
              70: {
                '-10': 158,
                '0': 175,
                '10': 189,
                '20': 193,
                '30': 195,
                '40': 185
              },
            }
          },
          off: {
            speed: {
              45: {
                '-10': 301,
                '0': 317,
                '10': 323,
                '20': 330,
                '30': 336,
                '40': 339
              },
              50: {
                '-10': 275,
                '0': 288,
                '10': 294,
                '20': 301,
                '30': 306,
                '40': 311
              },
              55: {
                '-10': 249,
                '0': 260,
                '10': 266,
                '20': 273,
                '30': 278,
                '40': 283
              },
              60: {
                '-10': 225,
                '0': 236,
                '10': 241,
                '20': 248,
                '30': 251,
                '40': 258
              },
              65: {
                '-10': 204,
                '0': 214,
                '10': 219,
                '20': 225,
                '30': 229,
                '40': 236
              },
              70: {
                '-10': 184,
                '0': 193,
                '10': 198,
                '20': 205,
                '30': 207,
                '40': 215
              },
            }
          }
        },
        21: {
          on: {
            speed: {
              45: {
                '-10': 223,
                '0': 255,
                '10': 287,
                '20': 289,
                '30': 288,
                '40': 260
              },
              50: {
                '-10': 211,
                '0': 238,
                '10': 264,
                '20': 267,
                '30': 267,
                '40': 246
              },
              55: {
                '-10': 197,
                '0': 220,
                '10': 242,
                '20': 246,
                '30': 246,
                '40': 230
              },
              60: {
                '-10': 183,
                '0': 203,
                '10': 221,
                '20': 225,
                '30': 227,
                '40': 212
              },
              65: {
                '-10': 168,
                '0': 186,
                '10': 202,
                '20': 206,
                '30': 208,
                '40': 196
              },
              70: {
                '-10': 155,
                '0': 171,
                '10': 184,
                '20': 188,
                '30': 190,
                '40': 181
              },
            }
          },
          off: {
            speed: {
              45: {
                '-10': 297,
                '0': 312,
                '10': 319,
                '20': 326,
                '30': 331,
                '40': 335
              },
              50: {
                '-10': 270,
                '0': 283,
                '10': 289,
                '20': 296,
                '30': 301,
                '40': 306
              },
              55: {
                '-10': 244,
                '0': 256,
                '10': 261,
                '20': 268,
                '30': 272,
                '40': 278
              },
              60: {
                '-10': 221,
                '0': 231,
                '10': 236,
                '20': 242,
                '30': 246,
                '40': 253
              },
              65: {
                '-10': 199,
                '0': 209,
                '10': 214,
                '20': 220,
                '30': 223,
                '40': 231
              },
              70: {
                '-10': 180,
                '0': 188,
                '10': 193,
                '20': 200,
                '30': 202,
                '40': 210
              },
            }
          }
        }
      },
      '75': {
        19: {
          on: {
            speed: {
              45: {
                '-10': 271,
                '0': 309,
                '10': 347,
                '20': 350,
                '30': 347,
                '40': 312
              },
              50: {
                '-10': 256,
                '0': 288,
                '10': 320,
                '20': 323,
                '30': 323,
                '40': 295
              },
              55: {
                '-10': 240,
                '0': 267,
                '10': 293,
                '20': 297,
                '30': 297,
                '40': 276
              },
              60: {
                '-10': 222,
                '0': 246,
                '10': 268,
                '20': 272,
                '30': 273,
                '40': 257
              },
              65: {
                '-10': 205,
                '0': 227,
                '10': 245,
                '20': 250,
                '30': 252,
                '40': 236
              },
              70: {
                '-10': 189,
                '0': 206,
                '10': 224,
                '20': 228,
                '30': 230,
                '40': 216
              },
            }
          },
          off: {
            speed: {
              45: {
                '-10': 359,
                '0': 377,
                '10': 385,
                '20': 393,
                '30': 398,
                '40': 403
              },
              50: {
                '-10': 326,
                '0': 342,
                '10': 349,
                '20': 356,
                '30': 360,
                '40': 368
              },
              55: {
                '-10': 296,
                '0': 309,
                '10': 316,
                '20': 323,
                '30': 326,
                '40': 335
              },
              60: {
                '-10': 268,
                '0': 280,
                '10': 286,
                '20': 292,
                '30': 295,
                '40': 305
              },
              65: {
                '-10': 242,
                '0': 253,
                '10': 259,
                '20': 265,
                '30': 268,
                '40': 278
              },
              70: {
                '-10': 219,
                '0': 229,
                '10': 234,
                '20': 241,
                '30': 244,
                '40': 253
              },
            }
          }
        },
        21: {
          on: {
            speed: {
              45: {
                '-10': 267,
                '0': 304,
                '10': 342,
                '20': 344,
                '30': 342,
                '40': 308
              },
              50: {
                '-10': 251,
                '0': 283,
                '10': 314,
                '20': 317,
                '30': 317,
                '40': 290
              },
              55: {
                '-10': 235,
                '0': 262,
                '10': 287,
                '20': 291,
                '30': 291,
                '40': 271
              },
              60: {
                '-10': 218,
                '0': 241,
                '10': 262,
                '20': 266,
                '30': 267,
                '40': 251
              },
              65: {
                '-10': 201,
                '0': 222,
                '10': 239,
                '20': 244,
                '30': 246,
                '40': 231
              },
              70: {
                '-10': 184,
                '0': 203,
                '10': 218,
                '20': 223,
                '30': 224,
                '40': 211
              },
            }
          },
          off: {
            speed: {
              45: {
                '-10': 353,
                '0': 372,
                '10': 279,
                '20': 387,
                '30': 392,
                '40': 397
              },
              50: {
                '-10': 320,
                '0': 336,
                '10': 343,
                '20': 350,
                '30': 354,
                '40': 361
              },
              55: {
                '-10': 290,
                '0': 303,
                '10': 309,
                '20': 316,
                '30': 319,
                '40': 329
              },
              60: {
                '-10': 262,
                '0': 274,
                '10': 279,
                '20': 286,
                '30': 288,
                '40': 299
              },
              65: {
                '-10': 237,
                '0': 247,
                '10': 253,
                '20': 259,
                '30': 262,
                '40': 272
              },
              70: {
                '-10': 214,
                '0': 223,
                '10': 229,
                '20': 235,
                '30': 238,
                '40': 247
              },
            }
          }
        }
      },
      '75D': {
        19: {
          on: {
            speed: {
              45: {
                '-10': 227,
                '0': 316,
                '10': 356,
                '20': 358,
                '30': 357,
                '40': 323
              },
              50: {
                '-10': 262,
                '0': 296,
                '10': 328,
                '20': 332,
                '30': 332,
                '40': 305
              },
              55: {
                '-10': 246,
                '0': 274,
                '10': 302,
                '20': 306,
                '30': 307,
                '40': 287
              },
              60: {
                '-10': 228,
                '0': 253,
                '10': 276,
                '20': 280,
                '30': 283,
                '40': 265
              },
              65: {
                '-10': 211,
                '0': 233,
                '10': 253,
                '20': 257,
                '30': 260,
                '40': 246
              },
              70: {
                '-10': 194,
                '0': 214,
                '10': 231,
                '20': 236,
                '30': 238,
                '40': 226
              },
            }
          },
          off: {
            speed: {
              45: {
                '-10': 368,
                '0': 387,
                '10': 395,
                '20': 404,
                '30': 410,
                '40': 415
              },
              50: {
                '-10': 335,
                '0': 351,
                '10': 359,
                '20': 367,
                '30': 374,
                '40': 380
              },
              55: {
                '-10': 304,
                '0': 318,
                '10': 325,
                '20': 334,
                '30': 339,
                '40': 346
              },
              60: {
                '-10': 275,
                '0': 288,
                '10': 294,
                '20': 303,
                '30': 307,
                '40': 316
              },
              65: {
                '-10': 249,
                '0': 261,
                '10': 267,
                '20': 275,
                '30': 279,
                '40': 289
              },
              70: {
                '-10': 225,
                '0': 236,
                '10': 242,
                '20': 250,
                '30': 253,
                '40': 263
              },
            }
          }
        },
        21: {
          on: {
            speed: {
              45: {
                '-10': 273,
                '0': 311,
                '10': 351,
                '20': 354,
                '30': 352,
                '40': 318
              },
              50: {
                '-10': 258,
                '0': 291,
                '10': 323,
                '20': 326,
                '30': 327,
                '40': 300
              },
              55: {
                '-10': 241,
                '0': 269,
                '10': 296,
                '20': 300,
                '30': 301,
                '40': 281
              },
              60: {
                '-10': 223,
                '0': 248,
                '10': 270,
                '20': 275,
                '30': 277,
                '40': 259
              },
              65: {
                '-10': 206,
                '0': 228,
                '10': 247,
                '20': 252,
                '30': 254,
                '40': 240
              },
              70: {
                '-10': 189,
                '0': 209,
                '10': 225,
                '20': 230,
                '30': 232,
                '40': 221
              },
            }
          },
          off: {
            speed: {
              45: {
                '-10': 363,
                '0': 382,
                '10': 390,
                '20': 398,
                '30': 405,
                '40': 409
              },
              50: {
                '-10': 330,
                '0': 346,
                '10': 353,
                '20': 361,
                '30': 368,
                '40': 373
              },
              55: {
                '-10': 299,
                '0': 312,
                '10': 319,
                '20': 327,
                '30': 333,
                '40': 340
              },
              60: {
                '-10': 270,
                '0': 282,
                '10': 288,
                '20': 296,
                '30': 301,
                '40': 309
              },
              65: {
                '-10': 244,
                '0': 255,
                '10': 261,
                '20': 269,
                '30': 273,
                '40': 282
              },
              70: {
                '-10': 219,
                '0': 230,
                '10': 236,
                '20': 244,
                '30': 247,
                '40': 257
              },
            }
          }
        }
      },
      '90D': {
        19: {
          on: {
            speed: {
              45: {
                '-10': 308,
                '0': 349,
                '10': 392,
                '20': 394,
                '30': 392,
                '40': 357
              },
              50: {
                '-10': 292,
                '0': 326,
                '10': 362,
                '20': 365,
                '30': 365,
                '40': 338
              },
              55: {
                '-10': 273,
                '0': 303,
                '10': 332,
                '20': 336,
                '30': 337,
                '40': 317
              },
              60: {
                '-10': 254,
                '0': 280,
                '10': 305,
                '20': 308,
                '30': 310,
                '40': 293
              },
              65: {
                '-10': 235,
                '0': 258,
                '10': 279,
                '20': 283,
                '30': 285,
                '40': 273
              },
              70: {
                '-10': 216,
                '0': 238,
                '10': 256,
                '20': 260,
                '30': 263,
                '40': 253
              },
            }
          },
          off: {
            speed: {
              45: {
                '-10': 406,
                '0': 426,
                '10': 434,
                '20': 443,
                '30': 451,
                '40': 455
              },
              50: {
                '-10': 370,
                '0': 386,
                '10': 394,
                '20': 403,
                '30': 412,
                '40': 416
              },
              55: {
                '-10': 336,
                '0': 350,
                '10': 358,
                '20': 366,
                '30': 274,
                '40': 380
              },
              60: {
                '-10': 304,
                '0': 317,
                '10': 324,
                '20': 332,
                '30': 338,
                '40': 347
              },
              65: {
                '-10': 276,
                '0': 288,
                '10': 295,
                '20': 302,
                '30': 308,
                '40': 317
              },
              70: {
                '-10': 250,
                '0': 261,
                '10': 268,
                '20': 275,
                '30': 279,
                '40': 290
              },
            }
          }
        },
        21: {
          on: {
            speed: {
              45: {
                '-10': 304,
                '0': 345,
                '10': 386,
                '20': 388,
                '30': 387,
                '40': 352
              },
              50: {
                '-10': 287,
                '0': 321,
                '10': 356,
                '20': 359,
                '30': 360,
                '40': 332
              },
              55: {
                '-10': 268,
                '0': 297,
                '10': 326,
                '20': 330,
                '30': 330,
                '40': 311
              },
              60: {
                '-10': 249,
                '0': 274,
                '10': 299,
                '20': 302,
                '30': 303,
                '40': 287
              },
              65: {
                '-10': 230,
                '0': 253,
                '10': 273,
                '20': 277,
                '30': 279,
                '40': 267
              },
              70: {
                '-10': 211,
                '0': 232,
                '10': 250,
                '20': 254,
                '30': 257,
                '40': 247
              },
            }
          },
          off: {
            speed: {
              45: {
                '-10': 401,
                '0': 420,
                '10': 428,
                '20': 437,
                '30': 446,
                '40': 449
              },
              50: {
                '-10': 364,
                '0': 380,
                '10': 388,
                '20': 397,
                '30': 405,
                '40': 410
              },
              55: {
                '-10': 330,
                '0': 344,
                '10': 351,
                '20': 359,
                '30': 367,
                '40': 373
              },
              60: {
                '-10': 298,
                '0': 311,
                '10': 318,
                '20': 325,
                '30': 331,
                '40': 340
              },
              65: {
                '-10': 270,
                '0': 282,
                '10': 288,
                '20': 296,
                '30': 301,
                '40': 310
              },
              70: {
                '-10': 244,
                '0': 255,
                '10': 262,
                '20': 269,
                '30': 273,
                '40': 284
              },
            }
          }
        }
      },
      'P100D': {
        19: {
          on: {
            speed: {
              45: {
                '-10': 341,
                '0': 390,
                '10': 439,
                '20': 442,
                '30': 440,
                '40': 401
              },
              50: {
                '-10': 323,
                '0': 365,
                '10': 405,
                '20': 409,
                '30': 410,
                '40': 380
              },
              55: {
                '-10': 303,
                '0': 339,
                '10': 372,
                '20': 376,
                '30': 379,
                '40': 353
              },
              60: {
                '-10': 282,
                '0': 313,
                '10': 341,
                '20': 345,
                '30': 347,
                '40': 329
              },
              65: {
                '-10': 261,
                '0': 289,
                '10': 312,
                '20': 317,
                '30': 318,
                '40': 306
              },
              70: {
                '-10': 240,
                '0': 265,
                '10': 285,
                '20': 290,
                '30': 293,
                '40': 283
              },
            }
          },
          off: {
            speed: {
              45: {
                '-10': 447,
                '0': 474,
                '10': 485,
                '20': 496,
                '30': 505,
                '40': 509
              },
              50: {
                '-10': 408,
                '0': 431,
                '10': 441,
                '20': 451,
                '30': 461,
                '40': 466
              },
              55: {
                '-10': 372,
                '0': 391,
                '10': 400,
                '20': 409,
                '30': 419,
                '40': 425
              },
              60: {
                '-10': 337,
                '0': 354,
                '10': 362,
                '20': 371,
                '30': 377,
                '40': 388
              },
              65: {
                '-10': 306,
                '0': 321,
                '10': 329,
                '20': 337,
                '30': 341,
                '40': 354
              },
              70: {
                '-10': 277,
                '0': 291,
                '10': 299,
                '20': 307,
                '30': 311,
                '40': 323
              },
            }
          }
        },
        21: {
          on: {
            speed: {
              45: {
                '-10': 322,
                '0': 369,
                '10': 414,
                '20': 417,
                '30': 416,
                '40': 379
              },
              50: {
                '-10': 306,
                '0': 347,
                '10': 384,
                '20': 388,
                '30': 389,
                '40': 360
              },
              55: {
                '-10': 228,
                '0': 323,
                '10': 354,
                '20': 358,
                '30': 360,
                '40': 336
              },
              60: {
                '-10': 269,
                '0': 299,
                '10': 325,
                '20': 329,
                '30': 331,
                '40': 313
              },
              65: {
                '-10': 250,
                '0': 276,
                '10': 299,
                '20': 303,
                '30': 305,
                '40': 292
              },
              70: {
                '-10': 230,
                '0': 254,
                '10': 273,
                '20': 278,
                '30': 281,
                '40': 271
              },
            }
          },
          off: {
            speed: {
              45: {
                '-10': 422,
                '0': 447,
                '10': 458,
                '20': 468,
                '30': 477,
                '40': 481
              },
              50: {
                '-10': 387,
                '0': 409,
                '10': 418,
                '20': 428,
                '30': 437,
                '40': 442
              },
              55: {
                '-10': 353,
                '0': 372,
                '10': 380,
                '20': 389,
                '30': 398,
                '40': 404
              },
              60: {
                '-10': 322,
                '0': 338,
                '10': 345,
                '20': 354,
                '30': 359,
                '40': 370
              },
              65: {
                '-10': 293,
                '0': 307,
                '10': 315,
                '20': 323,
                '30': 326,
                '40': 339
              },
              70: {
                '-10': 265,
                '0': 279,
                '10': 286,
                '20': 294,
                '30': 298,
                '40': 310
              },
            }
          }
        }
      }
    }
  }
