Coding Example: The Mandelbrot Set (Python approach)

# -----------------------------------------------------------------------------
# From Numpy to Python
# Copyright (2017) Nicolas P. Rougier - BSD license
# More information at https://github.com/rougier/numpy-book
# -----------------------------------------------------------------------------
import numpy as np
def mandelbrot_python(xmin, xmax, ymin, ymax, xn, yn, maxiter, horizon=2.0):
  def mandelbrot(z, maxiter):
    c = z
    for n in range(maxiter):
      if abs(z) > horizon:
        return n
      z = z*z + c
    return maxiter
  r1 = [xmin+i*(xmax-xmin)/xn for i in range(xn)]
  r2 = [ymin+i*(ymax-ymin)/yn for i in range(yn)]
  return [mandelbrot(complex(r, i),maxiter) for r in r1 for i in r2]
def mandelbrot(xmin, xmax, ymin, ymax, xn, yn, itermax, horizon=2.0):
    # Adapted from
    # https://thesamovar.wordpress.com/2009/03/22/fast-fractals-with-python-and-numpy/
    Xi, Yi = np.mgrid[0:xn, 0:yn]
    Xi, Yi = Xi.astype(np.uint32), Yi.astype(np.uint32)
    X = np.linspace(xmin, xmax, xn, dtype=np.float32)[Xi]
    Y = np.linspace(ymin, ymax, yn, dtype=np.float32)[Yi]
    C = X + Y*1j
    N_ = np.zeros(C.shape, dtype=np.uint32)
    Z_ = np.zeros(C.shape, dtype=np.complex64)
    Xi.shape = Yi.shape = C.shape = xn*yn
    Z = np.zeros(C.shape, np.complex64)
    for i in range(itermax):
        if not len(Z): break
        # Compute for relevant points only
        np.multiply(Z, Z, Z)
        np.add(Z, C, Z)
        # Failed convergence
        I = abs(Z) > horizon
        N_[Xi[I], Yi[I]] = i+1
        Z_[Xi[I], Yi[I]] = Z[I]
        # Keep going with those who have not diverged yet
        np.logical_not(I,I)
        Z = Z[I]
        Xi, Yi = Xi[I], Yi[I]
        C = C[I]
    return Z_.T, N_.T
if __name__ == '__main__':
    from matplotlib import colors
    import matplotlib.pyplot as plt
    from tools import timeit
    # Benchmark
    xmin, xmax, xn = -2.25, +0.75, int(3000/3)
    ymin, ymax, yn = -1.25, +1.25, int(2500/3)
    maxiter = 200
    timeit("mandelbrot_python(xmin, xmax, ymin, ymax, xn, yn, maxiter)", globals())

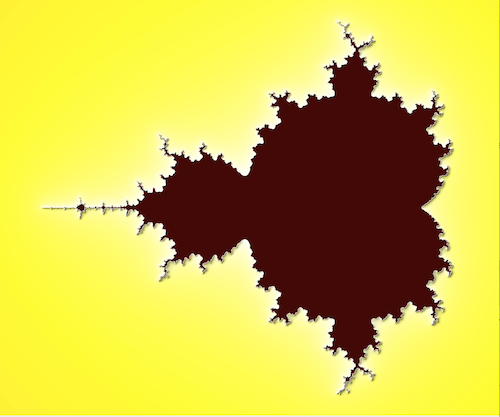

    # Visualization
    xmin, xmax, xn = -2.25, +0.75, int(3000/2)
    ymin, ymax, yn = -1.25, +1.25, int(2500/2)
    maxiter = 20
    horizon = 2.0 ** 40
    log_horizon = np.log(np.log(horizon))/np.log(2)
    Z, N = mandelbrot(xmin, xmax, ymin, ymax, xn, yn, maxiter, horizon)
    # Normalized recount as explained in:
    # http://linas.org/art-gallery/escape/smooth.html
    M = np.nan_to_num(N + 1 - np.log(np.log(abs(Z)))/np.log(2) + log_horizon)
    dpi = 72
    width = 10
    height = 10*yn/xn

    fig = plt.figure(figsize=(width, height), dpi=dpi)
    ax = fig.add_axes([0.0, 0.0, 1.0, 1.0], frameon=False, aspect=1)
    light = colors.LightSource(azdeg=315, altdeg=10)
    plt.imshow(light.shade(M, cmap=plt.cm.hot, vert_exag=1.5,
                           norm = colors.PowerNorm(0.3), blend_mode='hsv'),
               extent=[xmin, xmax, ymin, ymax], interpolation="bicubic")
    ax.set_xticks([])
    ax.set_yticks([])
    plt.savefig("output/mandelbrot.png")
    plt.show()
