Fizz Buzz Problem

FizzBuzz is a common interview problem in which a program prints a number series from 1 to n such that for every number that is a multiple of 3 it prints "fizz", for every number that is a multiple of 5 it prints "buzz" and for every number that is a multiple of both 3 and 5 it prints "fizzbuzz". We will be creating a multi-threaded solution for this problem.

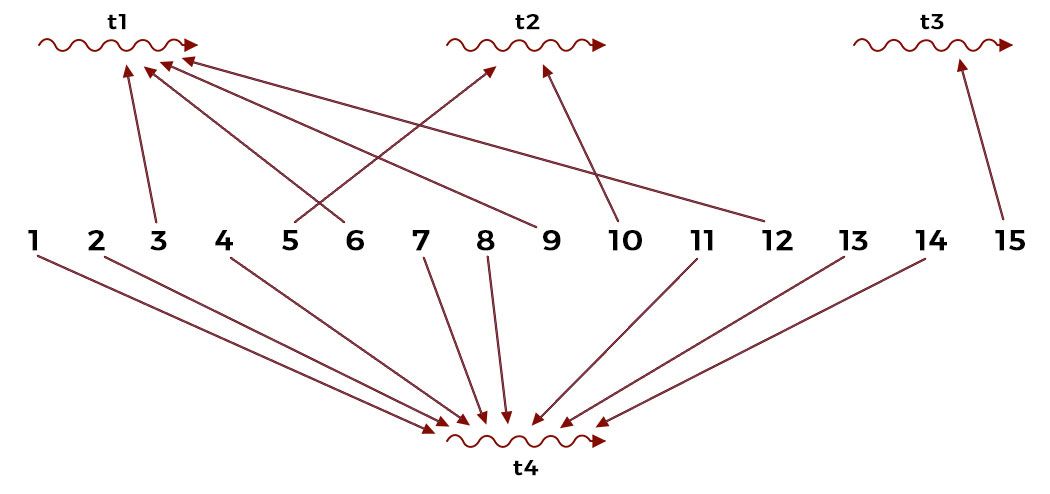

Suppose we have four threads t1, t2, t3 and t4. Thread t1 checks if the number is divisible by 3 and prints fizz. Thread t2 checks if the number is divisible by 5 and prints buzz. Thread t3 checks if the number is divisible by both 3 and 5 and prints fizzbuzz. Thread t4 prints numbers that are not divisible by 3 or 5. The workflow of the program is shown below:

The code for the class is as follows:

class MultithreadedFizzBuzz {

    def initialize(n)
        @n = n
    end

    def fizz
        puts "fizz"
    end

    def buzz
        puts "buzz"
    end

    def fizzbuzz
        puts "fizzbuzz"
    end

    def Number()
        puts "#{@num}"
    end
}

For an input integer n, the program should output a string containing the words fizz, buzz and fizzbuzz representing certain numbers. For example, for n = 15, the output should be: 1, 2, fizz, 4, buzz, fizz, 7, 8, fizz, buzz, 11, fizz, 13, 14, fizzbuzz.

We will solve this problem using the basic Ruby synchronization utilities; Mutex and Condition Variable. The basic structure of the class is given below.

class MultithreadedFizzBuzz

	def initialize(n)
		@n = n
		@num = 1
		@mutex = Mutex.new
		@cv = ConditionVariable.new
	end

	def fizzbuzz
	end

	def fizz
	end

	def buzz
	end

	def number
	end

end

The MultithreadedFizzBuzz class contains 4 private members: n,num,mutex and cv.

n is the last number of the series to be printed whereas num represents the current number to be printed. It is initialized with 1. mutex is used for synchronization amongst the threads and cv is a condition variable used for envoking wait() and broadcast() for the threads. The constructor method shown below initializes n with the input taken from user.

def initialize(n)
	@n = n
	@num = 1
	@mutex = Mutex.new
	@cv = ConditionVariable.new
end

The second method in the class, fizz prints "fizz" only if the current number is divisible by 3. The first loop checks if num (current number) is smaller than or equal to n(user input). Then num is checked for its divisibility by 3. We check if num is divisible by 3 and not by 5 because some multiples of 3 are also multiples of 5. If the condition is met, then "fizz" is printed and num is incremented. The waiting threads are notified via broadcast. If the condition is not met, the thread goes into wait.

def fizz
	@mutex.synchronize do
		while(@num <= @n)
			if (@num % 3 == 0 && @num % 5 != 0)
				puts "fizz"
				@num += 1
				@cv.broadcast
			else
				@cv.wait(@mutex)
			end
		end
	end
end

The next method buzz works in the same manner as fizz. The only difference here is the check to see if num is divisible by 5 and not by 3. The reasoning is the same: some multiples of 5 are also multiples of 3 and those numbers should not be printed by this function. If the condition is met, then "buzz" is printed otherwise the thread will wait.

def buzz
	@mutex.synchronize do
		while(@num <= @n)
			if (@num % 5 == 0 && @num % 3 != 0)
				puts "buzz"
				@num += 1
				@cv.broadcast
			else
				@cv.wait(@mutex)
			end
		end
	end
end

The next method fizzbuzz prints "fizzbuzz" if the current number in the series is divisible by both 3 and 5. A multiple of 15 is divisible by 3 and 5 both so num is checked for its divisibility by 15. After printing "fizzbuzz", num is incremented and waiting threads are notified via broadcast. If num is not divisible by 15 then the calling thread will wait.

def fizzbuzz
	@mutex.synchronize do
		while(@num <= @n)
			if (@num % 15 == 0)
				puts "fizzbuzz"
				@num += 1
				@cv.broadcast
			else
				@cv.wait(@mutex)
			end
		end
	end
end

The last method number checks if num is neither divisible by 3 nor by 5, then print the num.

def number
	@mutex.synchronize do
		while(@num <= @n)
			if (@num % 5 != 0 && @num % 3 != 0)
				puts "#{@num}"
				@num += 1
				@cv.broadcast
			else
				@cv.wait(@mutex)
			end
		end
	end
end

The complete code for MultithreadedFizzBuzz is as follows:

class MultithreadedFizzBuzz

	def initialize(n)
		@n = n
		@num = 1
		@mutex = Mutex.new
		@cv = ConditionVariable.new
	end

	def fizz
		@mutex.synchronize do
			while(@num <= @n)
				if (@num % 3 == 0 && @num % 5 != 0)
					puts "fizz"
					@num += 1
					@cv.broadcast
				else
					@cv.wait(@mutex)
				end
			end
		end
	end

	def buzz
		@mutex.synchronize do
			while(@num <= @n)
				if (@num % 5 == 0 && @num % 3 != 0)
					puts "buzz"
					@num += 1
					@cv.broadcast
				else
					@cv.wait(@mutex)
				end
			end
		end
	end

	def fizzbuzz
		@mutex.synchronize do
			while(@num <= @n)
				if (@num % 15 == 0)
					puts "fizzbuzz"
					@num += 1
					@cv.broadcast
				else
					@cv.wait(@mutex)
				end
			end
		end
	end

	def number
		@mutex.synchronize do
			while(@num <= @n)
				if (@num % 3 != 0 && @num % 5 != 0)
					puts "#{@num}"
					@num += 1
					@cv.broadcast
				else
					@cv.wait(@mutex)
				end
			end
		end
	end
end

To test our solution, we will be making 4 threads: t1,t2, t3 and t4. Three threads will check for divisibility by 3, 5 and 15 and print fizz, buzz, and fizzbuzz accordingly.. Thread t4 prints numbers that are not divisible by 3 or 5.
