How to read C declarations
The C programming language is notorious for its type declarations. The programming language was designed more than 50 years ago. The designers of the language, apparently, didn’t pay much attention to making it easier to understand declarations. Consider the following declaration.
int *p[4];
How should we read it? Is the above statement declaring p to be an array of four elements with each element pointing to an integer, or is it a pointer to an array of four elements each of which is an integer?
![Two possible graphical representations of int *p[4];](/api/page/6489684566605824/image/download/6338166603382784?page_type=collection_lesson&get_optimised=true&collection_token=undefined "Two possible graphical representations of int *p[4];")
The above example is simple. We know that p is an array of four elements, each of which is a pointer to an integer. Therefore, in the figure above, the graphical representation on the left is correct. Once we learn to decode C declarations, we will write the declaration for the graphical representation on the right.
The following declarations are more complicated.
char *(*(*a)())[10];int *(* const *b[8]) (void);char * const * (*c)(void);char *(*(*p[4])(char *))[];void (*s(int, void (*)(int)))(int);void *(*f(int))(int);struct IMAGE *(*(*(*fp)[5]))(const char *, int);char ** const * volatile x;char *(*(**f[][4])())[];
In this blog, we will learn how to read C declarations and apply that knowledge to convert the above declarations into simple English. We will first define some terminology and then outline the rules which will enable us to convert any declaration into a simple English sentence.
Declarator#
A declarator is a simple identifier (also called variable name), an array identifier (also called array variable name), a function name, or a pointer to any of the above, optionally followed by an equal sign and initial value or values. For example, first = 4, second[4] = {1, 1, 2, 3}, third(), *fourth, *fifth[4] and *sixth() are all valid declarators in the following declarations.
int first = 8;int second[4] = {1, 1, 2, 3};int third();int *fourth;int *fifth[4];int *sixth();
There may be any number of pointers, such as ***seventh, any number of array dimensions, such as eighth[4][5][6]; but only one pair of function parentheses. The declarator ninth()() is invalid. The declarators (*p)()[] , and(*p)[]() are also invalid.
An identifier, an identifier with array square brackets, or an identifier with function parentheses is also called a direct declarator. In the above examples, first, second[4], third(), fourth, fifth[4], and sixth() are direct declarators.
Type Specifier#
Type specifiers are char, double, float, int, long, signed, unsigned, enum, struct, and union. The keywords enum, struct and union are usually followed by what is called a tag. The keywords struct and union declare complex types.
Storage Class#
The storage class of a variable tells a compiler how to allocate memory for that variable. There are five storage classes, auto, extern, register, static, and typedef. The typedef storage class doesn't tell a compiler about memory allocation. It only defines a new name for a data type.
Declarations vs. definitions and linkage#
Decoding is easier when you also know what the line does.
Declaration#
Introduces a name and type to a scope (may or may not allocate storage).
Definition#
Allocates storage (for objects) or provides a body (for functions).
Rules of thumb#
extern int x;→ declaration only (no storage).int x;at file scope → definition (storage is allocated).int x = 42;→ definition with initialization.typedef unsigned long u64;→ not a variable; creates an alias for a type.
Linkage#
staticat file scope → internal linkage (name not visible outside the translation unit).extern→ refers to an entity defined elsewhere (external linkage).registeris largely obsolete in modern compilers.
Knowing this helps you decode and understand why the declaration exists.
Type Qualifier#
As of this writing, there are four type-qualifiers; const, restrict, volatile, and _Atomic. The type qualifiers restrict and _Atomic were introduced in C99 and C11 standards. _Atomic is not only a type qualifier, but it is also a type specifier when used with standard type specifiers. For example, _Atomic(int) is a type specifier and not a type qualifier. We will discuss _Atomic in detail in another other blog.
Type Qualifier Rule#
If a type qualifier or qualifiers appear next to a type specifier ( int, char, float, double, etc.) it applies to that type-specifier. Otherwise, it applies to the asterisk pointer to its immediate left. The type qualifier restrict only applies to pointers.
We will apply this rule several times in decoding C declarations so that it becomes clear.
Explanation of Type Qualifier Rule#
Consider the following declaration.
int const *p;const int *q;
The const keyword is next to a type specifier ( int ) in both declarations, therefore it applies to the type and not to the pointer asterisk. In the following declaration, the const keyword is not next to the type specifier, hence it applies to the pointer asterisk to its immediate left.
char * const r;
Const-correctness quick reference#
A few high-leverage patterns to remember when working with const in C and C++:
const int *p≡int const *p→ pointer to const int (the pointee is const;pcan change to point elsewhere).int * const p→ const pointer to int (the pointer is fixed; the int can change).const int * const p→ const pointer to const int.
Tip:
Qualifiers bind to the thing they’re next to.
If adjacent to
*, they qualify the pointer.If adjacent to the base type, they qualify the pointee.
This matches the logic of Rule 3 from the declarator reading order.
For function pointers, qualifiers apply the same way
int (* const fp)(void); // const pointer to function returning intconst int * (*g)(void); // pointer to function returning pointer to const int
Rules for Understanding C Declarations#
We locate the first identifier reading from the left and then follow the precedence rules.
Precedence Rules#
Rule 1. Read the postfix operators (square brackets indicating an array and parentheses indicating a function) from left to right, till the semicolon or the closing unmatched parenthesis is reached.
Rule 2. Read the prefix asterisk operators indicating a pointer, till the beginning of the declaration or the opening parenthesis, corresponding to the closing parenthesis of Rule 1, is reached.
Rule 3. If a type qualifier or qualifiers appear next to a type specifier ( int, char, float, double, etc.) it applies to that type-specifier. Otherwise, it applies to the asterisk pointer to its immediate left. The type qualifier restrict only applies to pointers.
The clockwise/spiral rule (a second, visual algorithm)#
Many engineers like the clockwise/spiral rule as a tactile way to read a declarator:
Start at the identifier (e.g.,
pinint *p[4];).Move right as far as you can, consuming any postfix (
()function,[]array).Spiral left to consume a single prefix
*(pointer).Repeat steps 2–3, jumping across parentheses when you hit them, until you run out of tokens.
Finally, prepend the base type you see to the left (
int,struct T, etc.).
Examples#
int *p[4];
→ p right:[]⇒ “array[4]”; spiral left:*⇒ “pointer to”; prependint⇒
“p is array[4] of pointer to int.”int (*p)[4];
→ p right:)stops; left:*⇒ “pointer to”; right outside parens:[]⇒ “array[4]”; prependint⇒
“pointer to array[4] of int.”
The spiral rule is equivalent to standard precedence rules but is often faster to do in your head.
Arrays, pointers, and function parameters (decay, VLAs)#
In parameter lists, arrays decay to pointers:
void f(int a[10]); // actually void f(int *a);void g(int a[static 10]); // C99+ “bounds” hint, still received as int*
This is why int *a and int a[] are equivalent as parameters.
If you truly want a pointer to an array of N, you must write:
void h(int (*pa)[10]); // pa points to an array[10] of int
Similarly, for multi-dimensional arrays, the rightmost dimension must be known (or variable length in C99+) so the compiler can compute offsets:
void m(int rows, int cols, int a[rows][cols]); // VLA parameter (C99+)void m2(int (*a)[10]); // pointer to array[10]
This distinction — p[N] vs (*p)[N] — is one of the most common decoding pitfalls.
Application of Rules#
Let's apply the above rules to understand the very first declaration we talked about, i.e. int *p[4];.
In the following illustrations, the red arrow indicates starting position and the green arrow indicates the ending position. The rule under consideration is applicable to the text between the two arrows. The purple color is used to indicate the text that has already been processed.
The first identifier in the above declaration is p.
We apply Rule 1 and read the postfix operator (in this case square brackets indicating an array) till we reach the semicolon, "
pis an array of 4 . . .".
Since a semicolon marks the end of a declaration, we stop the application of Rule 1 and apply Rule 2. We read the prefix operator (asterisk indicating a pointer), preceded by the type specifier
int, till we reach the beginning of the declaration, "pis an array of 4 pointers to integers."
Before moving on to other complex declarations, let's see which C declaration would correspond to the graphical representation shown below.
It shows p to be a pointer to an array of 4 integers. Since the pointer asterisk has lower precedence than array brackets and function parentheses, we have to enclose *p within parentheses to elevate its precedence as shown below.
int (*p)[4];
Let's start with p and read the declaration.
We attempt to apply Rule 1 but do not find any postfix operators. We find an unmatched closing parenthesis.
We apply Rule 2 to the prefix asterisk operator (pointer) till we reach the opening parenthesis and read, "
pis a pointer to . . .".
We have read whatever we found inside the parentheses and apply Rule 1 to the part of the declaration outside the parenthesis. We find a postfix operator (in this case the square brackets indicating any array), followed by the semicolon indicating the end of the declaration, and read, "
pis a pointer to an array of 4 . . .".
We have reached the end of the declaration but still have a part of the declaration to read. We apply Rule 2 but do not see any prefix operators. Instead, we find the type specifier
intbefore reaching the beginning of the declaration line, and read, "pis a pointer to an array of 4 integers."
More Examples#
Let us apply what we have learned to convert the following declaration into simple English.
char *(*(*a)())[10];
The first identifier in the declaration is
a. This is where we start.
We find an unmatched closing parenthesis to the right of
a. We cannot apply Rule 1 as there are no postfix operators.
We apply Rule 2 to the part up to the opening parenthesis, which includes a prefix asterisk operator indicating a pointer, and read, "
ais a pointer to . . .".
We have taken care of the innermost parentheses. We apply Rule 1 to the part of the declaration up to the next unmatched closing parenthesis. The postfix operator we find is a pair of parentheses indicating a function. We read, "
ais a pointer to a function that has no parameters . . .".
We apply Rule 2 to the part of the declaration up to the opening parenthesis as shown, and read, "
ais a pointer to a function that has no parameters and returns a pointer to . . .".
We have read the part of the declaration in the outermost pair of parentheses. We apply Rule 1 to the remaining part of the declaration. We find a postfix operator (square brackets in this case) indicating an array, followed by the semicolon. We read, "
ais a pointer to a function that has no parameters and returns a pointer to an array of 10 . . .".
We reached the end of the declaration while applying Rule 1. We now apply Rule 2 to the remaining part of the declaration. We find a prefix asterisk operator indicating a pointer, preceded by the type specifier
char. This takes us to the beginning of the declaration. We read, "ais a pointer to a function that has no parameters and returns a pointer to an array of 10 pointers to characters."
This is a complicated function pointer declaration. The following program shows how this declaration could be used in a C program.
#include <stdio.h>#include <stdlib.h>char *(*(myfunc)())[10]{char *(*p)[10];p = malloc(sizeof(char *) * 10);/* process the allocated 80-byte block as required */return (p);}int main(int argc, char *argv[], char *envp[]) {char *(*q)[10];char *(*(*a)())[10] = myfunc;printf("Size of pointer on this machine: %lu bytes\n", sizeof(char *));q = a();fprintf(stdout, "p: %p\t p+1: %p\n", q, (q+1));return (0);}
On 64-bit machines, all pointers ( char *, char **, char ***, and so on) are 8-byte long. Compiling and executing the above program produces output like shown below.
Size of pointer on this machine: 8 bytes
q: 0x600001e90d20 q+1: 0x600001e90d70
We observe that even though q is an 8-byte pointer, advancing it by 1 changes the address by 0x50 or 80 bytes. This confirms that q is indeed a pointer to an array of 10 pointers to characters, exactly as we found by decoding it.
Let us decode one more complex C declaration, which will require applying
Rule 3 If a type qualifier or qualifiers appear next to a type specifier ( int, char, float, double, etc.) it applies to that type-specifier. Otherwise, it applies to the asterisk pointer to its immediate left. The type qualifier restrict only applies to pointers. char ** const * volatile x;
We find the first identifier in the declaration, which is
x.
There is a semicolon to the immediate right of
xhence we cannot applyRule 1 Read the postfix operators (square brackets indicating an array and parentheses indicating a function) from left to right, till the semicolon or the closing unmatched parenthesis is reached. xis the type qualifiervolatilewhich means we have to applyRule 3 If a type qualifier or qualifiers appear next to a type specifier ( int, char, float, double, etc.) it applies to that type-specifier. Otherwise, it applies to the asterisk pointer to its immediate left. The type qualifier restrict only applies to pointers. Rule 3 If a type qualifier or qualifiers appear next to a type specifier ( int, char, float, double, etc.) it applies to that type-specifier. Otherwise, it applies to the asterisk pointer to its immediate left. The type qualifier restrict only applies to pointers. volatileapplies to the asterisk (pointer) to its immediate left.
Since the type qualifier applies to the asterisk to its immediate left, we stop here temporarily and read till this point. "
xis a volatile pointer to . . .".We find
constto the left of the constant pointer. According toRule 3 If a type qualifier or qualifiers appear next to a type specifier ( int, char, float, double, etc.) it applies to that type-specifier. Otherwise, it applies to the asterisk pointer to its immediate left. The type qualifier restrict only applies to pointers. xis a volatile pointer to a constant pointer . . .".
We apply
Rule 2 Read the prefix asterisk operators indicating a pointer, till the beginning of the declaration or the opening parenthesis, corresponding to the closing parenthesis of Rule 1, is reached. char. We read, "xis a volatile pointer to a constant pointer to a pointer to a character."
A variable may be initialized in the declaration. Let us consider such a declaration.
int ( * cmp ) ( const void *, const void * ) = ascending ;
The identifier
cmpis our starting point.
We try to apply
Rule 1 Read the postfix operators (square brackets indicating an array and parentheses indicating a function) from left to right, till the semicolon or the closing unmatched parenthesis is reached. cmp. We read, "cmpis . . .".
We apply
Rule 2 Read the prefix asterisk operators indicating a pointer, till the beginning of the declaration or the opening parenthesis, corresponding to the closing parenthesis of Rule 1, is reached. cmp, preceded by the opening parenthesis. We read, "cmpis a pointer to . . .".
We apply
Rule 1 Read the postfix operators (square brackets indicating an array and parentheses indicating a function) from left to right, till the semicolon or the closing unmatched parenthesis is reached. (*cmp)indicating a function. We continue till we reach the corresponding closing parenthesis, and read, "cmpis a pointer to a function (which has two parameters, both are pointers to constant void)".
We still haven't reached a semicolon or an unmatched parenthesis, so we continue applying
Rule 1 Read the postfix operators (square brackets indicating an array and parentheses indicating a function) from left to right, till the semicolon or the closing unmatched parenthesis is reached. =) indicating an initializer. Let's handle it at the end.We apply
Rule 2 Read the prefix asterisk operators indicating a pointer, till the beginning of the declaration or the opening parenthesis, corresponding to the closing parenthesis of Rule 1, is reached. intto the immediate left of(*cmp)which is a type specifier. We read, "cmpis a pointer to a function (which has two parameters, both are pointers to constant void) and returns an integer."
The initialization part of the declaration stores the value of the variable
ascending(which must be a function of the appropriate type, as mentioned in the declaration) in the identifiercmp.
Finally, let's look at the most complicated declaration in the list given at the beginning.
struct IMAGE *(*(*(*fp)[5]))(const char *, int);
On applying the rules, we obtain the following simple English representation:
" fp is a pointer to an array of 5 pointers to pointer to functions (whose first parameter is a pointer to a constant character and the second parameter is an integer) and returns a pointer to struct IMAGE."

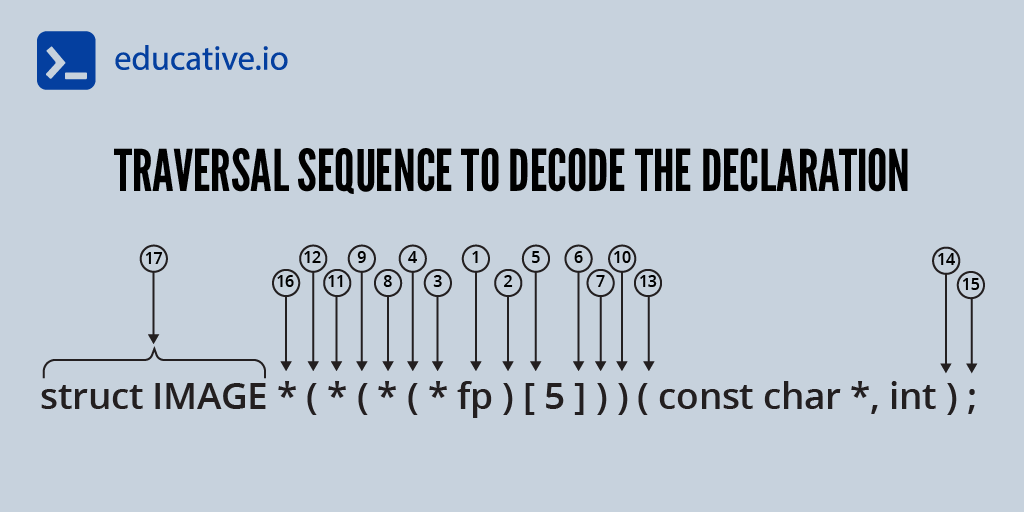

The figure below shows the sequence in which this complex declaration is handled, by numbering its various parts.
Taming monsters with typedef#
Real-world code rarely keeps complex declarators “raw.”
Use typedef to name the pieces for clarity and maintainability.
typedef int (*cmp_fun)(const void*, const void*);int ascending(const void*, const void*);cmp_fun cmp = ascending; // readable
You can chain typedefs to simplify deeply nested declarations:
typedef char *charp;typedef charp arr10[10]; // array[10] of char*typedef arr10 *ret_t; // pointer to array[10] of char*typedef ret_t (*factory)(void); // pointer to function(void) returning ret_t
typedef doesn’t create a new type — it renames an existing one.
But it dramatically improves readability and is the industry-standard way to “decode once, read many.”
Summary#
Every C declaration begins with a type specifier, such as char, int, double, etc, or a type qualifier const or volatile. The type qualifier restrict cannot begin a declaration as it applies to pointers only. The type specifier could be one keyword, such as int, or multiple keywords, such as unsigned long int, or long double. Type specifier may have the struct, union, and enum keywords.
We start with the first identifier from left, applying Rule 1 (postfix operators) till we encounter an unmatched closing parenthesis or a semicolon indicating the end of the declaration. Then we apply Rule 2 (prefix operators) till we encounter an opening parenthesis or reach the beginning of the declaration.
We alternate between
With this knowledge, we can decode any valid complex C declaration into simple English.
Mini cheat sheet of frequent patterns#
T *p→ pointer toTT **p→ pointer to pointer toTT p[N]→ array[N]ofTT (*p)[N]→ pointer to array[N]ofTT *p[N]→ array[N]of pointer toTT (*p)(args)→ pointer to function takingargsreturningTT (*p[])(args)→ array of pointer to function takingargsreturningTT (*(*p)[N])(args)→ pointer to array[N]of pointer to function takingargsreturningTconst T *p/T const *p→ pointer to constTT * const p→ const pointer toT
Keep this near your editor until the shapes become second nature.
Tooling: check your reading with cdecl and the compiler#
Two practical ways to validate a tricky line:
cdecl (online or CLI)#
English → C:
declare a as pointer to function (void) returning pointer to array 10 of pointer to charC → English:
explain char *(*(*a)())[10]
Your compiler#
Put the declaration in a tiny
.cfile and compile with-Wall -Wextra -Wpedantic(GCC/Clang).Try taking
sizeofof sub-expressions via helper code to confirm “pointer to array” vs “array of pointers” behavior.
This feedback loop cements the decoding skill fast.
Exercises#
Please decode the following declarations for more practice. Answers are provided to verify your work.
int *(* const *b[8]) (void);char * const * (*c)(void);char *(*(*p[4])(char *))[];void (*s(int, void (*)(int)))(int);void *(*f(int))(int);char ** const * volatile x;char *(*(**f[][4])())[];
Answers#
bis array 8 of pointers toconstpointers to function which takes no parameters and returns a pointer tointcis a pointer to a function with no parameters returning a pointer toconstpointer tocharpis an array 4 of pointer to functions that has a pointer tocharparameter returning a pointer to an array of pointers tocharsis a function that takes two parameters, the first one is anintand the second one is a pointer to a function that takes anintand returnsvoid,returning a pointer to a function that has anintparameter and returnsvoidfis a function that takes anintparameter and returns a pointer to a function that takes anintparameter and returns a pointer tovoidxisvolatilepointer toconstpointer to pointer tocharfis a two-dimensional array (second dimension is 4) of pointer to pointer to function, that takes on parameters, returning pointer to array of pointer tochar
