Python Tkinter Tutorial: build a number guessing game

Jul 21, 2020 - 11 min read
Pratik Shukla
editor-page-cover


This article is part of a Python Tkinter series written by Pratik Shukla. Check out his Medium account to read his other articles. And stay tuned for more Tkinker articles from Pratik!

Tkinter is Python’s standard interface to the Tk GUI (Graphical User Interface) toolkit and the de facto standard GUI. A GUI allows you to interact with a computer using visual items such as windows, icons, and menus, used by most modern operating systems. This a powerful tool useful for building all sorts of projects, and it makes it easier to visualize your code.

In this article, we’ll see basics of Tkinter and different types of widgets we can use in a Python application. Later in this article, we’ll develop a cool number guessing game using Tkinter widgets.

Today, we will cover:


Basics of Tkinter

Before building our games, we need to know some basics of Tkinter. The Tkinter package is the standard python interface to the Tk GUI toolkit. We generally use Tkinter package to insert different GUI widgets in our application to make it more user friendly. If you work with Python on Linux, Windows, or Mac, Python Tkinter is already installed on your device.


How do we develop a GUI application?

The basic process for creating a GUI application is as follows:

%0 node_2 Import the Tkinter Module node_3 Create Main Window node_2->node_3 node_1595364367852 Add Widgets node_3->node_1595364367852 node_1595364410098 Enter Main Loop node_1595364367852->node_1595364410098

Steps involved in developing a GUI application using Python:

  • Import the tkinter module.
  • Create the main window for our GUI application.
  • Now add as many widgets as we want for our application.
  • Enter the main event loop to execute our prime functionalities.

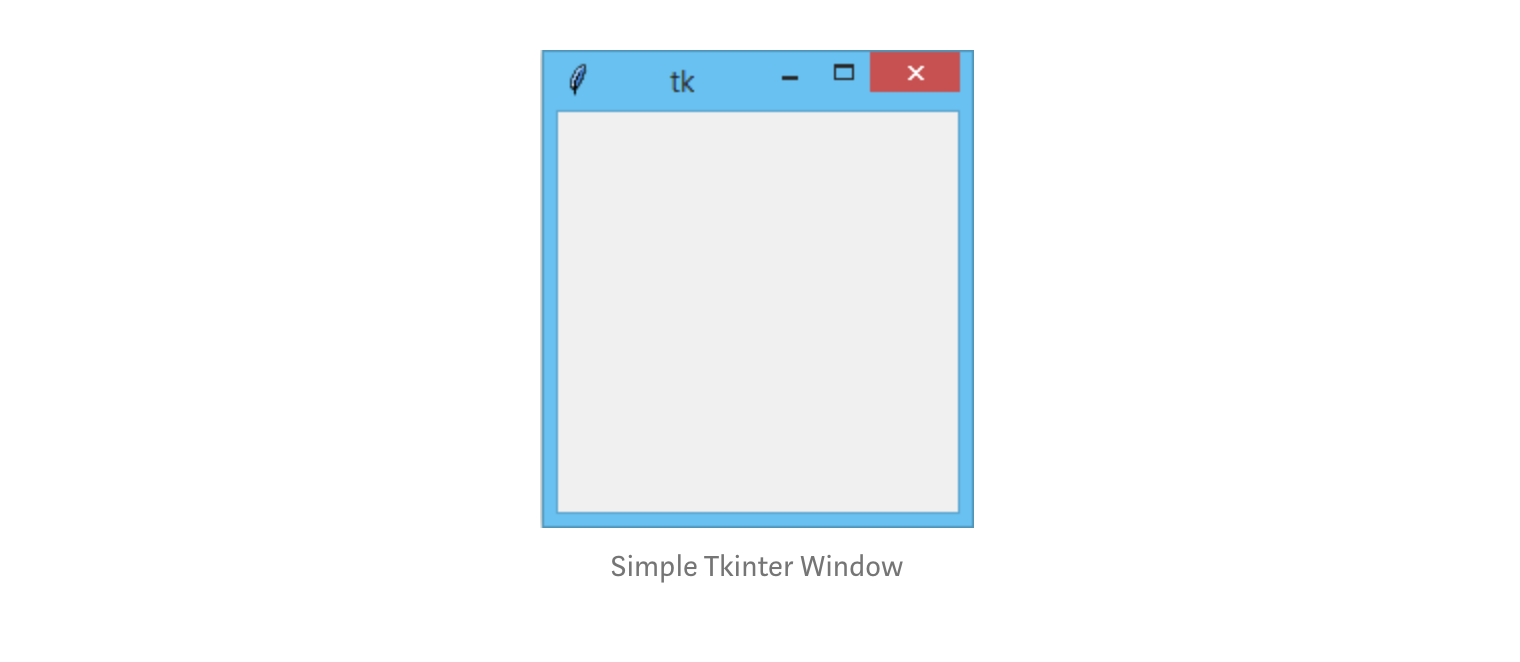

Let’s now see how we can create a simple tkinter window:

First of all we are going to import tkinter module. It contains all the functions, classes and other things we are going to need to build our application. Now as we have imported the module we need to initialize our tkinter. For that we create Tk( ) root widget. Now this will create our main GUI window in which we are going to add our widgets. At this point our main window have only title bar.

We should create only one window for our application and this window must be created before adding any other widgets in it. After then we use root.mainloop( ). The main window we just created won’t appear unless we enter the mainloop. When we press the close button, our program will exit the main loop. Our application will keep running until we press the close button.


Code used to create a simple tkinter window:

#import required libraries
from tkinter import *

# initialize tkinter :
root = Tk()

# enter the main Loop :
root.mainloop()
widget

Widgets of Tkinter with Examples

  • Button: To display button.
  • Canvas: To draw shapes.
  • Checkbutton: To display number of options as checkbox.
  • Entry: To take single line input from user.
  • Frame: To organize other widgets.
  • Label: To add captions for other widgets.
  • Listbox: To provide a list of options to user.
  • Menubutton: To display menus in our application.
  • Menu: To provide various commands to user.
  • Message: To display multiline text fields.
  • Radio Button: To display number of options as radio buttons.
  • Scale: To provide slider.
  • Scrollbar: To add scrolling capability.
  • Text: To display text in multiple lines.
  • Toplevel: To provide separate window container.
  • Spinbox: To select from a fixed entry value.
  • PanedWindow: To arrange the widgets horizontally or vertically.
  • LabelFrame: To provide space in complex structure.
  • tkMessageBox: To display messagebox in application.

Now we’ll take a brief look at some of the widgets we are going to need in out application. Keep in mind that here we’re going to take simplest example demonstrating the widget. There are many more features available in each widgets. We’ll see some of them while developing our game.


A few Tkinter widgets examples

Button: The button widget is used to display buttons in our application. Generally when we press a button there will be a command associated with it.

# Import required libraries :
from tkinter import *

# Initialize tkinter :
root = Tk()

# Adding widgets :

# Add button :
btn = Button(root,text="PRESS ME",command=lambda:press())
# Place button in window :
btn.grid(row=0,column=0)

# Define the function :
def press()
  lbl = Label(root,text="You Pressed The Button")
  lbl.grid(row=0,column=1)

# Enter the main Loop :
root.mainloop()

Label: The label widget is used to provide single line caption for other widgets in our application.

# Import required libraries :
from tkinter import *

# Initialize tkinter :
root = Tk()

# Adding widgets :

# Add label :
lbl = Label(root,text="This is label")

# Place the button on window :
lbl.grid(row=0,column=1)

# Enter the main Loop :
root.mainloop()

Canvas: The canvas widget is used for drawing various shapes.

# Import required libraries :
from tkinter import *

# Initialize tkinter :
root = Tk()

# Adding widgets :
# Add canvas :
# Create canvas object :
c = Canvas(root,bg="3389db",height=250,width-300)

# Draw a straight line :
line = c.create_line(0,0,50,50)

# To fit the line in the window
c.pack()

# Enter the main loop
root.mainloop()

CheckButton: We use checkbutton to display multiple options available to users. Here users can choose more than one options.

# Import required libraries :
from tkinter import *

# Initialize tkinter :
root = Tk()

# Adding widgets :
# Add checkbutton :

# IntVar() hold integers
# Default value is 0
# If checkbox is marked, this will change to 1
checkvar1 = IntVar()
checkvar2 = IntVar()

# Create checkbutton
c1 = Checkbutton(root,text="BMW", variable=checkvar1)
c2 = Checkbutton(root,text="Audi",variable=checkbar2)

# To fit in the main window
c1.grid(row=0,column=0)
c2.grid(row=1,column=0)

# Enter the main Loop
root.mainloop()

Entry: The Entry widget is used to take single line input from user.

# Import required libraries
from tkinter import *

# Initialize tkinter
root = Tk()

# Adding widgets
# Label
lbl = Label(root,text="Enter your name:")
lbl.grid(row=0,column=0)

# Entry
e = Entry(root)
e.grid(row=0,column=1)

# Enter the main Loop
root.mainloop()

Frame: It’s used as a container widget to organize other widget in the same application.

# Import required libraries
from tkinter import *

# Initialize tkinter
root = Tk()

# Adding widgets

frame = Frame(root)
frame.pack()

# Add button on Left
A = Button(frame,text="A")
A.pack(side = LEFT)

# Add button on Right
B = Button(frame,text="B")
B.pack(side = RIGHT)

# Enter the main Loop
root.mainloop()

Listbox: It’s used to provide list of options to users.

# Import required libraries
from tkinter import *

# Initialize tkinter
root = Tk()

# Adding widgets

# Create Listbox :
Lb = Listbox(root)

# Add items in list
Lb.insert(1,"A")
Lb.insert(2,"B")
Lb.insert(3,"C")
Lb.insert(4,"D")

# Place listbox on window
Lb.grid(row=0,column=0)

# Enter the main Loop
root.mainloop()


Build a number guessing game from scratch


Step-by-step walkthrough

When the user runs the program, our code will generate a random number between 0–9. The user will be unaware of the randomly generated number. Now the user has to guess the value of the randomly generated number. The user enters the value in the entry box.

After that, the user will press the check button. The button will trigger a function. The function will check whether the number entered by user matches the randomly generated number. If the guessed number is correct, then the program will display the CORRECT label and the actual number (which, in this case, will be same as guessed number).

Now, if the guessed number is less than the randomly generated number, then our program will show the TOO LOW label, and this will also clear the entry box, so that the user can enter a new number.

If the guessed number is higher than the actual number, then our program will show the TOO HIGH label and clear the entry box. This way the user can continue guessing the correct number.

If the label shows TOO HIGH, then the user is supposed to enter a lower number than they guessed. If the label shows TOO LOW, then the user is supposed to enter a higher number than they guessed the first time.

Our program will also count the number of attempts it took the user to guess the correct number. It will show the total attempts when the user finally make the correct guess.

If the user wants to play a new game, they have to press the main close button. If the user presses the CLOSE button in our application then they will exit the game completely.

Putting it in simple steps:

  • Run the application.
  • Enter your guess.
  • Press the check button.
  • Guess a new number if the label doesn’t show correct.
  • If the label shows correct then show the number of attempts.
  • Press the main close button to restart the game with new number.
  • Press the close button from our application to exit the game completely.

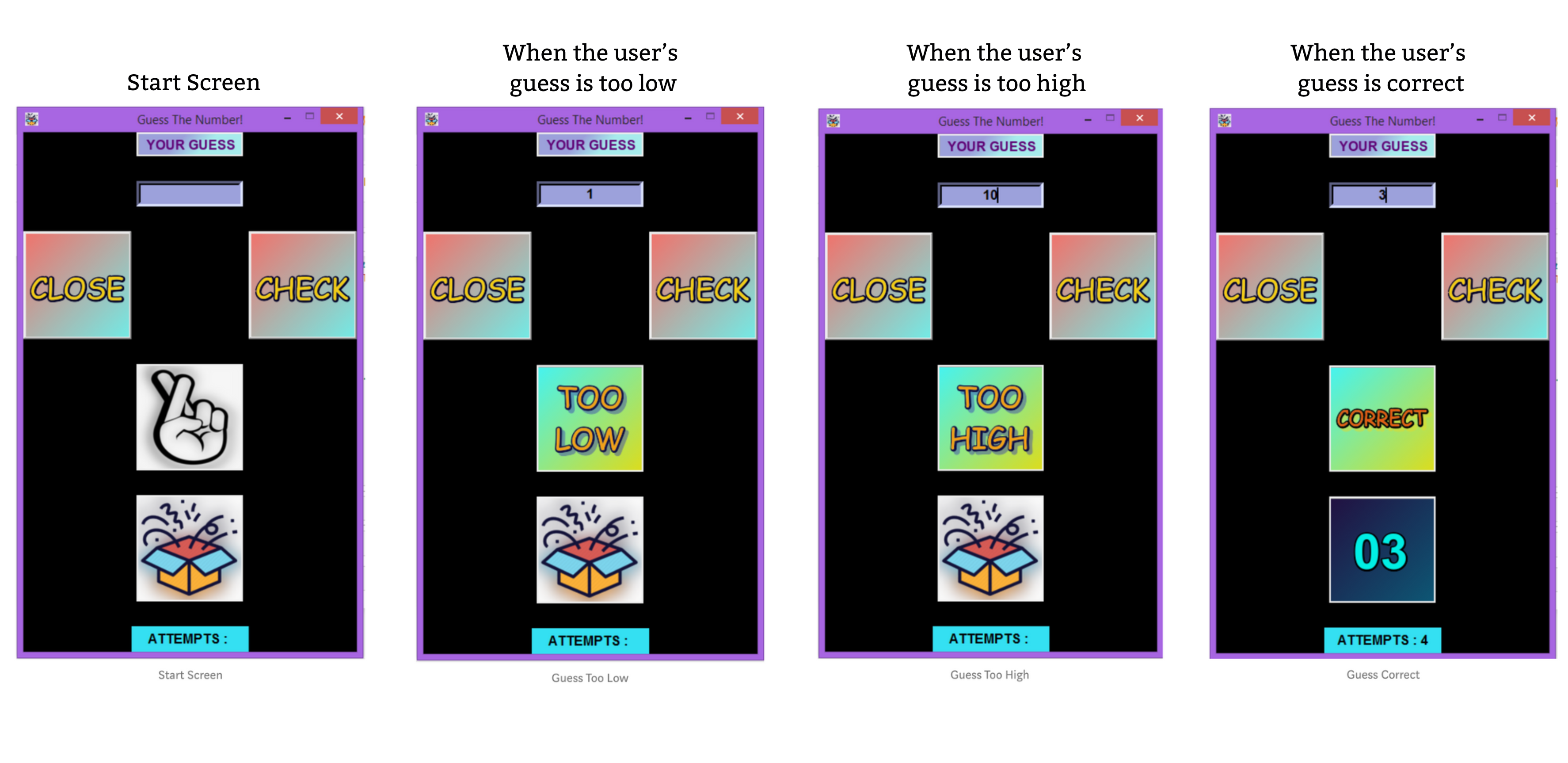

Final application

You can download the images and the code files used in the application from here. Or, to see the final code for this game, click here to reach the end of the article.

widget

Let’s code!

We’ll show you step-by-step how to build the above game using Python tkinter. Let’s jump right in.


Step 1: Import the required libraries

# import required libraies :

from tkinter import * # to add widgets
import random # to generate a random number
import tkinter.font as font # to change properties of font
import simpleaudio as sa # to play sound files

Step 2: Creating main tkinter window

want_to_play = True

while want_to_play==True:

  root = Tk()
  root.title("Guess The Number!")
  root.geometry('+100+0')
  root.configure(bg="#000000")
  root.resizable(width=False,height=False)
  root.iconphoto(True,PhotoImage(file="surprise.png"))
Main Window
  • First we create a variable called want_to_play and set its value to True. Our program will generate a new window when the variable is set to True. When the user presses the main close button, it will exit the loop, but here we’ve set the variable to True, so it will create another window with newly generated number.
  • root = Tk( ): This is used to initialize our tkinter module.
  • root.title( ): We use it to set the title for our application.
  • root.geometry( ): We use this to specify at which location our application window will open.
  • root.configure( ): We use this to specify the background color for our application.
  • root.resizable( ): Here we are using it to prevent the users from resizing our main window.
  • root.iconphoto( ): We are using it to set the icon in the title bar for our application window. We are setting the first parameter to True.

Step 3: Importing sound files

# to play sound files
start = sa.WaveObject.from_wave_file("Start.wav")
one = sa.WaveObject.from_wave_file("Win.wav")
two = sa.WaveObjet.from_wave_file("Lose.wav")
three = sa.WaveObject.from_wave_file("Draw.wav")

start.play()
Sound Files

Now we will use some sound files that will play at various events. When our program starts it will play start file. We’ll play the rest three files when the user’s guess is correct, when the user’s guess is wrong and when user closes the application respectively. One thing to notice is that it only accepts .wav files. First of all we need to load the sound file in an object. Then we can play it using .play( ) method when required.


Step 4: Loading images for our application

We are going to use various images in our application. To use those images first we need to load those images. Here we are going to use PhotoImage class to load our images.

# Loading images
Check = PhotoImage(file="Check_5.png")
High = PhotoImage(file="High_5.png")
Low = PhotoImage(file="Low_5.png")
Correct = PhotoImage(file="Correct_5.png")
Surprise = PhotoImage(file="Surprise.png")
your_choice = PhotoImage(file="YOUR_GUESS.png")
fingers = PhotoImage(file="fingers.png")
close = PhotoImage(file="Close_5.png")

Step 5: Generating a random number

Here we’re going to generate a random number between 1–9. We are going to use the random module to generate random integer between 1–9.

# generating random number
number = random.randint(1,9)

Step 6: Modify fonts

Here we’ll use the font module to change the fonts in our application.

# using font module to modify fonts
myFont = font.Font(family='Helvetica',weight='bold')

Step 7: Adding widgets

Here we have added the first two widgets of our application. Notice that the entry box is at row 2 since we have added blank space in row 1. Here we are going to use an image file in our label. We use .grid( ) to specify the location of a particular widget.

# Creating first label
label = Label(root,image=your_choice)
label.grid(row=0,column=1)

# Creating the entry box
e1 = Entry(root,bd=5,width=13,bg="9ca1db",justify=CENTER,font=myFont)
e1.grid(row=2,column=1)

Step 8: Creating other widgets

Here we’ll add some other widgets like button and label. There will be two buttons one to check the value and other to close the window permanently. The second label will show whether the value guessed by the user is correct or high or low. It will show the label accordingly. The third label reveals the correct number if user’s guess is correct.

The fourth label reveals the total number of attempts it took the user to guess the correct value. Here notice that the two buttons will trigger a command. We will take a look at that in the next points.

# Creating check button :
b1 = Button(root,image=Check,command=lambda:show())
b1.grid(row=4,column=3)

# Creating close button :
b2 = Button(root,image=close,command=lambda:reset())

#Creaating second label :
label2 = Label(root,image=fingers)
label2.grid(row=6,column=1)

#Creating third label :
label3 = Label(root,image=Surprise)
label3.grid(row=10,column=1)

#Creating fourth label :
label4= Label(root,text="ATTEMPTS : ",bd=5,width=13,bg="#34e0f2",justify=CENTER,font=myFont)
label4.grid(row=12,column=1)

Step 9: Display the correct image and set the counter to the attempt values

Here we are going to display the correct number image when the user’s guess is right. Our digits are stored like:

  • 1.png
  • 2.png
  • 3.png
  • 100.png

So our program will take the actual number and add the .png string with it and open that file. We will also set the counter to count the attempt values. It will store the value of number of attempt it take user to guess the correct number.

# to display the correct image
num = PhotoImage(file = str(number)+str(".png"))

# Set the count to 0
count = 0

Step 10: Function that will trigger when we press the check button

Here whenever the user presses the check button the count values for number of attempts will increase by one. Then we are storing the value entered by user in the variable called answer. Then we will check if the user hasn’t entered any value and pressed the check button the it will go to the reset() function and the application will close.

Now we have to convert the value entered by user to integer as we are going to compare it with the actual number.

def show():

    #Increase the count value as the user presses check button.
    global count
    count = count+1

    #Get the value entered by user.
    answer = e1.get()

    #If the entry value is null the goto reset() function.
    if answer=="":
        reset()

    #Convert it to int for comparision.
    answer = int(e1.get())

    if answer > number:
            #Play sound file.
            two.play()
            #Change the label to Too High.
            label2.configure(image=High)
            #Calls all pending idle tasks.
            root.update_idletasks()
            #Wait for 1 second.
            root.after(1000)
            #Clear the entry.
            e1.delete(0,"end")
            #Change the label to the original value.
            label2.configure(image=fingers)

        elif answer < number:
            #Play sound file.
            two.play()
            #Change the label to Too Low.
            label2.configure(image=Low)
            #Calls all pending idle tasks.
            root.update_idletasks()
            #Wait for 1 second.
            root.after(1000)
            #Clear the entry.
            e1.delete(0,"end")
            #Change the label to the original value.
            label2.configure(image=fingers)

        else:
            #Play sound file.
            one.play()
            #Show the CORRECT image.
            label2.configure(image=Correct)
            #Show the correct number.
            label3.configure(image=num)
            #Show the number of attempts.
            label4.configure(text="ATTEMPTS : "+str(count))
show( ) function

Step 11: Close button that will trigger the reset() function

This function will set the want_to_play variable to False so that our application will close and will not start again. Then it will close the main window of our application.

# define reset() function
def reset():
  # Play sound file
  three.play()
  # Change the variable to false
  global want_to_play
  want_to_play = false
  # Close the tkinter window
  root.destroy()

Step 12: Main loop

We have to enter the main loop to run the program. If our program doesn’t have this line then it will not work. Our program will remain in the main loop until we press the close button.

# Enter the mainLoop
root.mainloop()

Putting it all together

#Import required libraries :

from tkinter import *
import random
import tkinter.font as font
import simpleaudio as sa


want_to_play = True

while want_to_play==True:

    root = Tk()
    root.title("Guess The Number!")
    root.geometry('+100+0')
    root.configure(bg="#000000")
    root.resizable(width=False,height=False)
    root.iconphoto(True,PhotoImage(file="surprise.png"))


    #To play sound files:
    start = sa.WaveObject.from_wave_file("Start.wav")
    one = sa.WaveObject.from_wave_file("Win.wav")
    two = sa.WaveObject.from_wave_file("Lose.wav")
    three = sa.WaveObject.from_wave_file("Draw.wav")

    start.play()

    #Loading images :
    Check = PhotoImage(file="Check_5.png")
    High = PhotoImage(file="High_5.png")
    Low = PhotoImage(file="Low_5.png")
    Correct = PhotoImage(file="Correct_5.png")
    Surprise= PhotoImage(file ="Surprise.png")
    your_choice = PhotoImage(file="YOUR_GUESS.png")
    fingers = PhotoImage(file = "Fingers.png")
    close = PhotoImage(file="Close_5.png")

    #To have space between rows.
    root.grid_rowconfigure(1, minsize=30)
    root.grid_rowconfigure(3, minsize=30)
    root.grid_rowconfigure(5, minsize=30)
    root.grid_rowconfigure(9, minsize=30)
    root.grid_rowconfigure(11, minsize=30)

    #Generating random number :
    number = random.randint(1,9)

    #Using font module to modify the fonts :
    myFont = font.Font(family='Helvetica',weight='bold')

    #Creating the first label :
    label = Label(root,image=your_choice)
    label.grid(row=0,column=1)

    #Creating the entry box :
    e1 = Entry(root,bd=5,width=13,bg="#9ca1db",justify=CENTER,font=myFont)
    e1.grid(row=2,column=1)

    #Creating check button :
    b1 = Button(root,image=Check,command=lambda:show())
    b1.grid(row=4,column=3)

    #Creating close button :
    b2 = Button(root,image=close,command=lambda:reset())
    b2.grid(row=4,column=0)

    #Creaating second label :
    label2 = Label(root,image=fingers)
    label2.grid(row=6,column=1)

    #Creating third label :
    label3 = Label(root,image=Surprise)
    label3.grid(row=10,column=1)

    #Creating fourth label :
    label4= Label(root,text="ATTEMPTS : ",bd=5,width=13,bg="#34e0f2",justify=CENTER,font=myFont)
    label4.grid(row=12,column=1)

    #To display the correct image :
    num = PhotoImage(file=str(number)+str(".png"))

    #Set the count to 0.
    #It stores the attempt value.
    count = 0

    def show():

        #Increase the count value as the user presses check button.
        global count
        count = count+1

        #Get the value entered by user.
        answer = e1.get()

        #If the entry value is null the goto reset() function.
        if answer=="":
            reset()

        #Convert it to int for comparision.
        answer = int(e1.get())

        if answer > number:
            #Play sound file.
            two.play()
            #Change the label to Too High.
            label2.configure(image=High)
            #Calls all pending idle tasks.
            root.update_idletasks()
            #Wait for 1 second.
            root.after(1000)
            #Clear the entry.
            e1.delete(0,"end")
            #Change the label to the original value.
            label2.configure(image=fingers)

        elif answer < number:
            #Play sound file.
            two.play()
            #Change the label to Too Low.
            label2.configure(image=Low)
            #Calls all pending idle tasks.
            root.update_idletasks()
            #Wait for 1 second.
            root.after(1000)
            #Clear the entry.
            e1.delete(0,"end")
            #Change the label to the original value.
            label2.configure(image=fingers)

        else:
            #Play sound file.
            one.play()
            #Show the CORRECT image.
            label2.configure(image=Correct)
            #Show the correct number.
            label3.configure(image=num)
            #Show the number of attempts.
            label4.configure(text="ATTEMPTS : "+str(count))


    #Define reset() function :
    def reset():
        #Play the sound file.
        three.play()
        #Change the variable to false.
        global want_to_play
        want_to_play = False
        #Close the tkinter window.
        root.destroy()

    #Enter the mainloop :
    root.mainloop()

Congrats! You’ve reached the end and built a successful Python Tkinter game. Great work applying your Python knowledge. I hope you enjoyed this article and learnt something new from it. In this series on Tkinter we’ll be developing a total of Five games using Tkinter. So, hang tight!

If you have any doubts, questions, or thoughts regarding this article, feel free to contact me at shuklapratik22@gmail.com


Continue learning


WRITTEN BYPratik Shukla

Join a community of 270,000 monthly readers. A free, bi-monthly email with a roundup of Educative's top articles and coding tips.
